Outdoor Pylon Wayfinding Signs

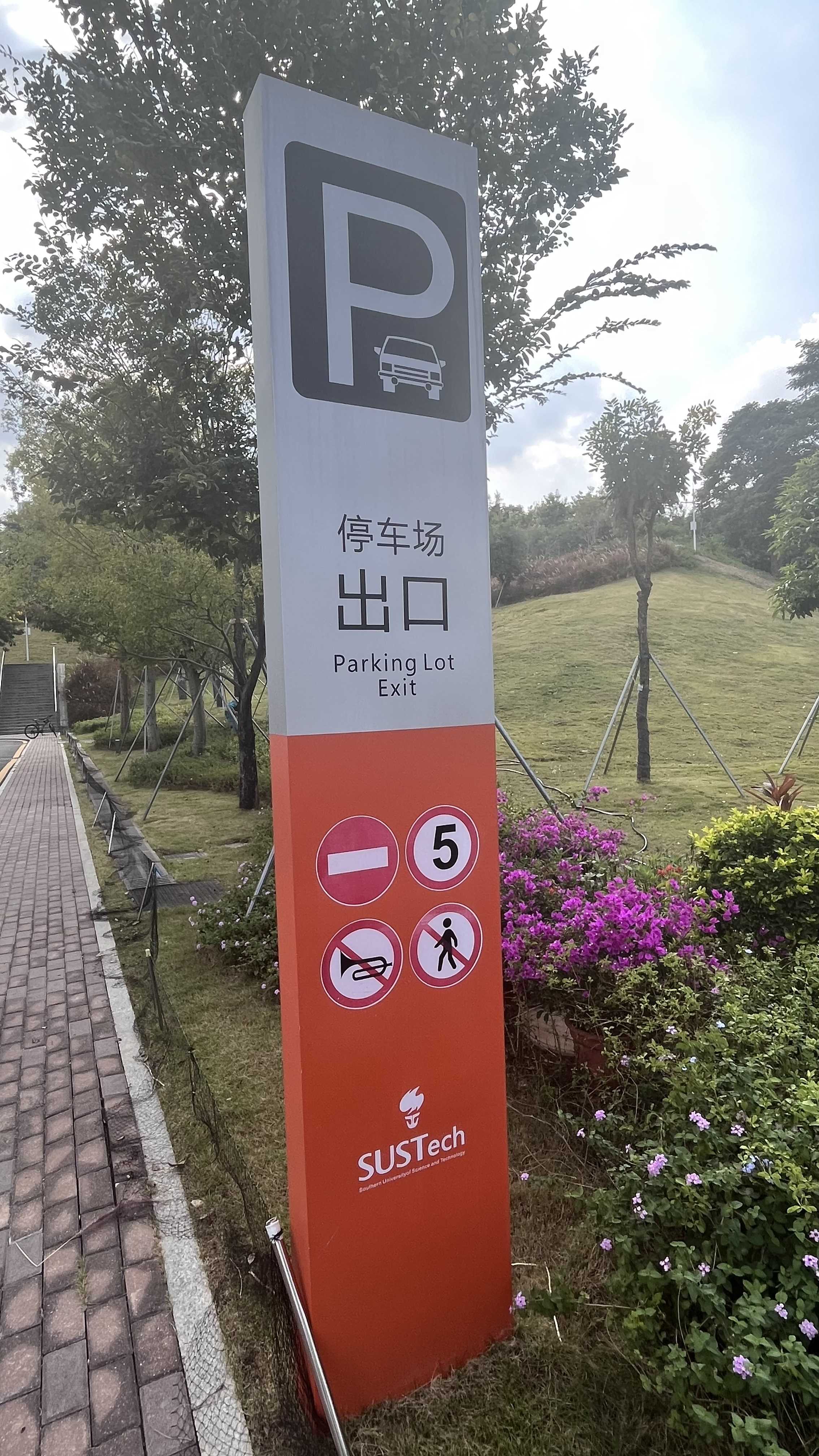

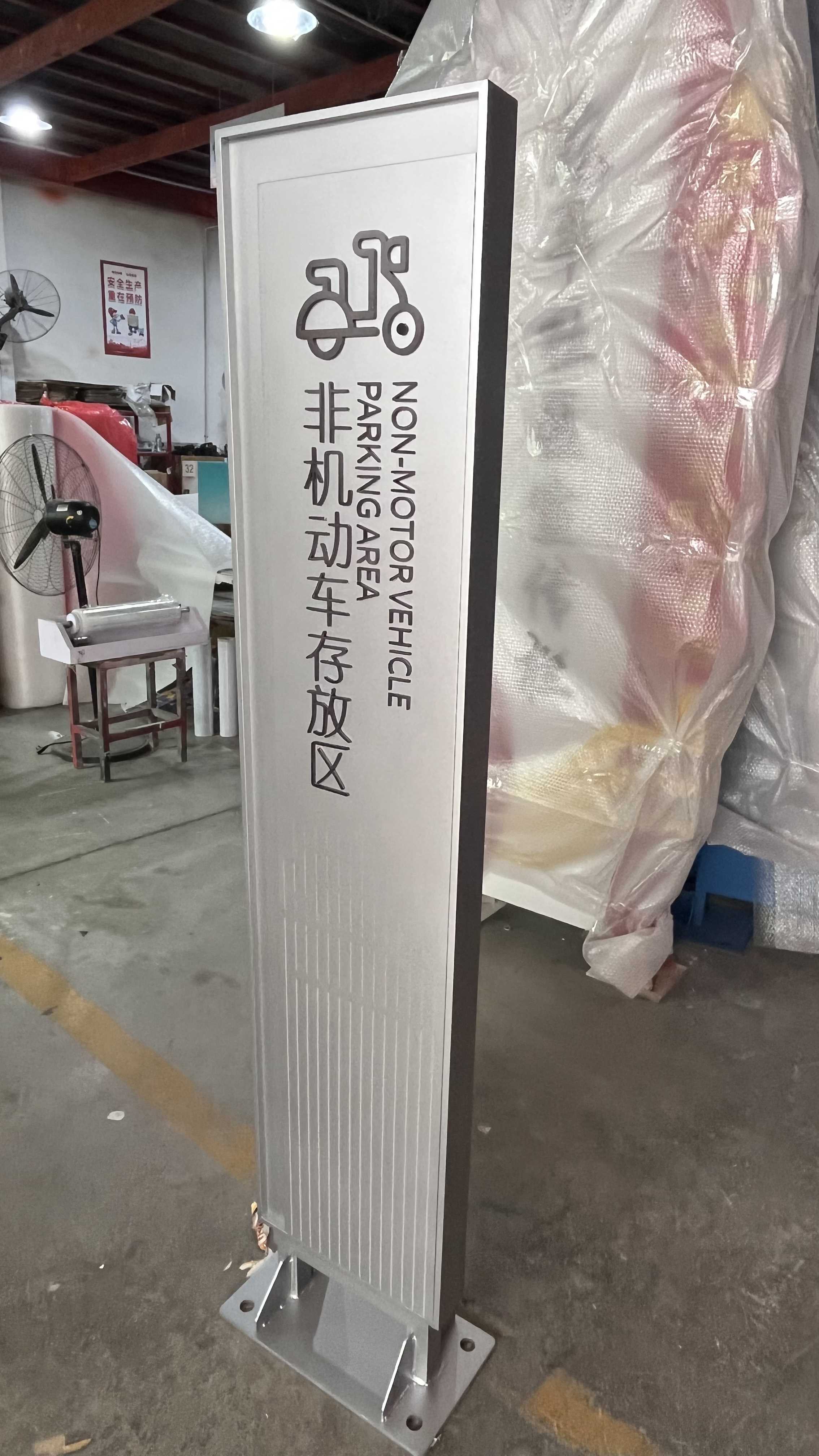

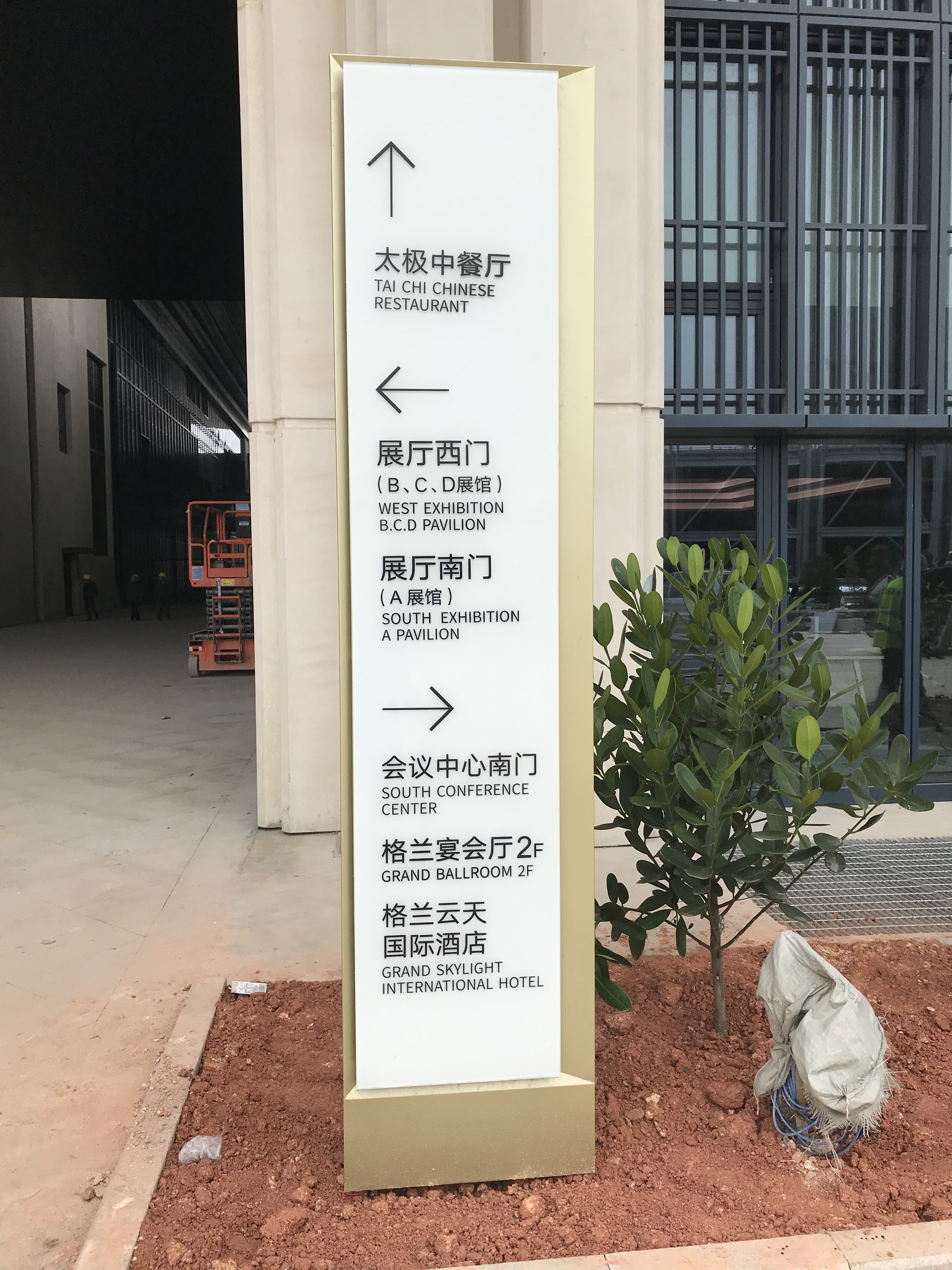

Pylon wayfinding signs are widely used in outdoor environments such as commercial complexes, parks, and campuses, providing clear navigation and enhancing overall site organization.

Material & Structure

The structure is designed for high strength and outdoor durability.

• Panel material: aluminum plate (2.5mm–4.0mm) or stainless steel (1.2mm–2.0mm)
• Internal structure: galvanized steel frame (40×40mm / 50×50mm square tube)
• Structure process: laser cutting + bending + welding
• Reinforced internal support structure

Surface & Finish

• Surface finish: powder coating / fluorocarbon coating
• Weather resistance: suitable for outdoor use
• Color: customizable according to project

Graphics & Details

• Graphics: UV printing / silk screen / vinyl
• Optional: laser cut letters / engraved panels
• High contrast design for readability

Lighting System (Optional)

• LED type: high brightness LED modules
• Light type: backlit or internal illumination
• Waterproof rating: IP65 / IP67
• Power supply: Mean Well or equivalent
• Voltage: AC 110–240V / DC 12V / 24V

Durability

• Anti-corrosion and UV resistant
• Wind-resistant structure design
• Suitable for outdoor long-term use
• Service life: 8–10 years

Installation

• Ground-mounted installation
• Embedded foundation with anchor bolts
• Reinforced base plate (8mm–12mm thickness)
• Suitable for concrete base fixing

Key Features

• Strong and stable structure
• Clear directional guidance
• High durability for outdoor use
• Customizable design and size
• Suitable for large-scale projects

Applications

• Commercial complexes
• Industrial parks
• Public spaces
• Campuses
• Outdoor navigation systems
